ARM250
ARM25012 AUTOMATIC GATE OPERATOR
ARM250
12 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL / COMMERCIAL - 4.0 METRE LEAF

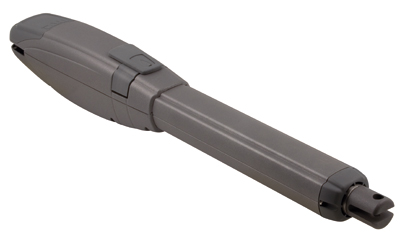

Manufactured by TAU in Italy the ARM25012 is a high quality, powerful 12 volt (actually an 18 volt motor but labeled 12 volt so as not to cause confusion) swing gate electro mechanical operator. This swing gate motor is a perfect example of a commercial operator designed to be also acceptable to high end residential installations. The ARM25012 uses minimum side room and is suitable for gates up to 4.0 metres wide. The ARM25012 is a self locking operator with key operated manual override but one of the main benefits of the low voltage motor is the ability to use battery backup meaning you may never have to use the manual override key. The ARM25012 is a perfect example of you get what you pay for in that it is slightly more expensive than some of it's similar rated cousins but then it boasts a number of features not found on the less expensive models and the build quality is obvious. Internally the ARM25012 is all metal quality build and has a built in optical encoder.

It is possible to use a variety of control boards to control the ARM25012 but the to take advantage of the optical encoder technology the preferred board is the LOGICTAUD749 which can be used as a one or two motor controller. The LOGICTAUD749 has inputs for the encoder, slow down mode, all your safety input features and battery backup is available. The LOGICTAUD749 like all TAU product is robust and tough whilst simple to use. Complete the TAU picture with TAU remote controls that work with the built in receiver card. Keep the quality throughout.
You can watch a good video of the ARM250 in action here.
PRICING
This product has free delivery when ordered online.
ARM25012 -
Single motor with built in optical encoder.
$784.00
BUY ONLINE
LOGICTAUD749MA -
Logic control for one or two motors with receiver.
$413.00
BUY ONLINE
REMTAUSLIM -
2 channel 433mhz key ring style remote control.
$57.00
BUY ONLINE
TAUKEYPAD -
TAU wireless outdoor keypad
$238.00
BUY ONLINE
DIAMONDBATT -
Battery leads for TAU control board. (Requires 9ah battery)
$6.00
BUY ONLINE
SOLAROPT1210 -
10W panel, 26ah battery and galv enclosure
$490.00
BUY ONLINE
SOLAROPT1225 -
25W panel, 26ah battery, regulator and enclosure
$598.00
BUY ONLINE
OUTSWING -
Zinc dipped 8mm solid steel outswing bracket
$71.00
BUY ONLINE
SPECIFICATION
Motor Voltage -
12 volts DC
Current Standby -
0mA
Current at use -
1.0A
Motor power -
120W
Maximum thrust -
2600Nm
Opening Time 90 degrees -
12.5 seconds
Maximum gate width -
4000 mm
Duty cycle -
100%
Height -
122mm
Width -
99mm
Length -
951mm
Weight -
7.0 Kg
IP rating -
IP44
DOWNLOAD & MANUALS
MOTOR MANUAL -
Click here to download the installation manual.
LOGIC CONTROL MANUAL -
Click here to download the logic control manual.
BROCHURE -
Click here for a brochure on the ARM250.
OPTIONS
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.

ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
