SWING GATE HINGES
A full range of gate hardware, including hinges with bearings and adjustable height. Heavy duty hinges built to take the heavy loads demanded by automatic gates most with height and gap adjustment.

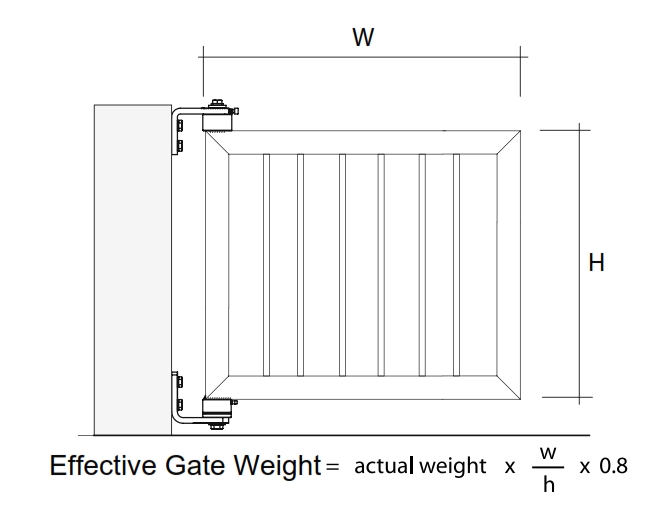

HOW TO CALCULATE EFFECTIVE GATE WEIGHT AND CHOOSE A HINGE TO SUIT

EGW
Hinge capacity ratings are based on a square gate. A 100kg gate 2.0m wide with hinges 2.0m apart needs two hinges each rated at 100kg. A wider gate needs hinges rated more than the gate weight. This is where the Effective Gate Weight is critical. E.g.. 100kg gate 2.0m high, hinges 1.0m apart has an EGW of 160kg.

ADJUSTABLE HINGE

ADJUSTABLE HINGE
This adjustable hinge has been one of Europe's favorites for decades. Simple in construction yet so versatile in that each of the hinge points can be individually adjusted. Invaluable with double gates. Galvanised finish.
ADJHINGE - $17.00 each
Rating - 150kg

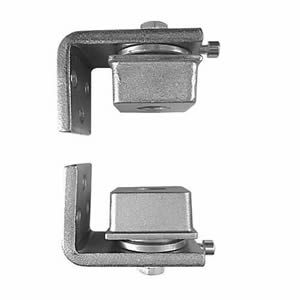

BEARING HINGE FOR 50X50X1.6 STEEL SHS

BEARING HINGE STEEL
Heavy duty bolt or weld on hinge pair designed for 50x50x1.6 mm steel SHS. Galvanised finish with adjuster for alignment. Suitable for heavy gates and as a top hinge for underground motors. Fully sealed bearings. Gap from Post to gate adjustable from 17mm to 40mm.
BEARHINGEST - $57.70 pair
Rating - 200kg

BEARING HINGE FOR 50X50X2.5 TO 3.0 ALUMINIUM SHS

BEARING HINGE ALUMINIUM
Heavy duty bolt or weld on hinge pair designed for 50x50x2.5 to 3.0mm aluminium SHS. Galvanised finish with adjuster for alignment. Suitable for heavy gates and as a top hinge for underground motors. Fully sealed bearings. Gap from Post to gate adjustable from 17mm to 40mm.
BEARHINGEAL - $73.30 pair
Rating - 200kg

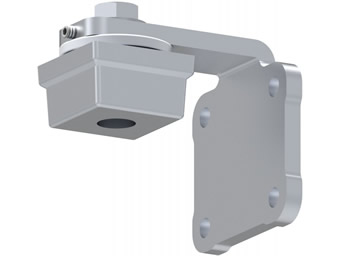

INSERT HINGE FOR 50X50X2.0MM SHS

INSERT HINGE TOP
Italian made heavy duty bolt or weld on hinge pair designed for 50x50x2.0mm SHS. Galvanised finish with adjuster for alignment. Suitable for heavy gates and as a top hinge for underground motors. Fully sealed bearings. Gap from Post to gate adjustable from 90mm to 100mm.
INSERTHINGETOP - $97.60 each.
Rating - 300kg

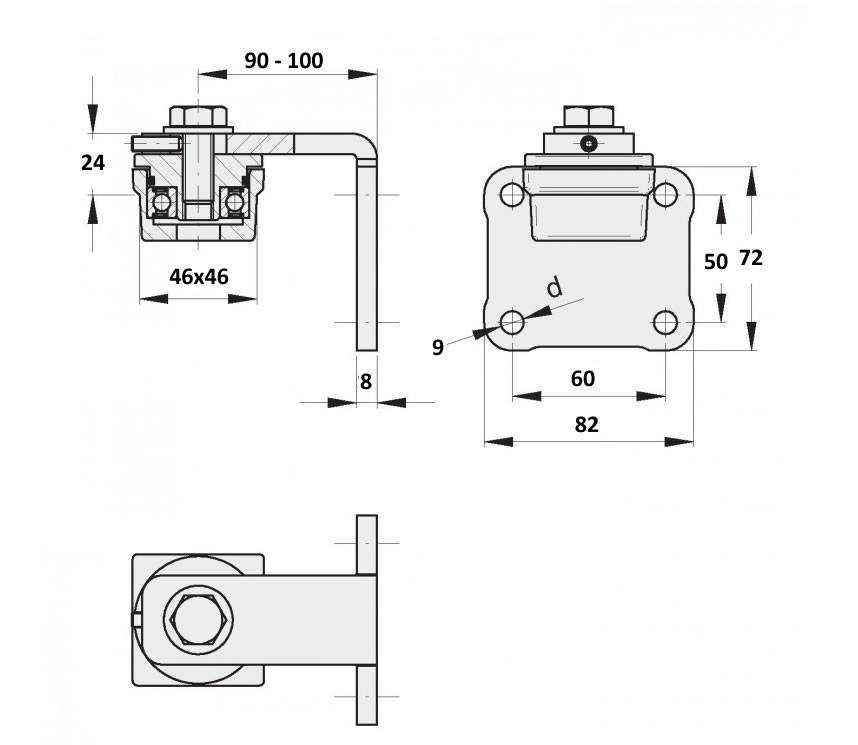

Hinge dimensions click here.

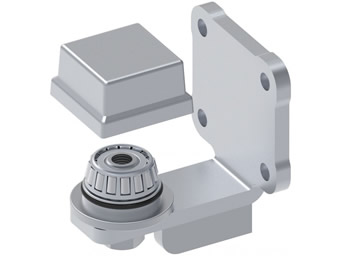

BEARING HINGE FOR 50X50X2.0MM SHS

INSERT HEINGE BOTTOM
Italian made heavy duty bolt or weld on hinge pair designed for 50x50x2.0mm SHS. Galvanised finish with adjuster for alignment. Suitable for heavy gates and as a top hinge for underground motors. Fully sealed bearings. Gap from Post to gate adjustable from 90mm to 100mm.
INSERTHINGEBOTT - $112.30 each.
Rating - 300kg

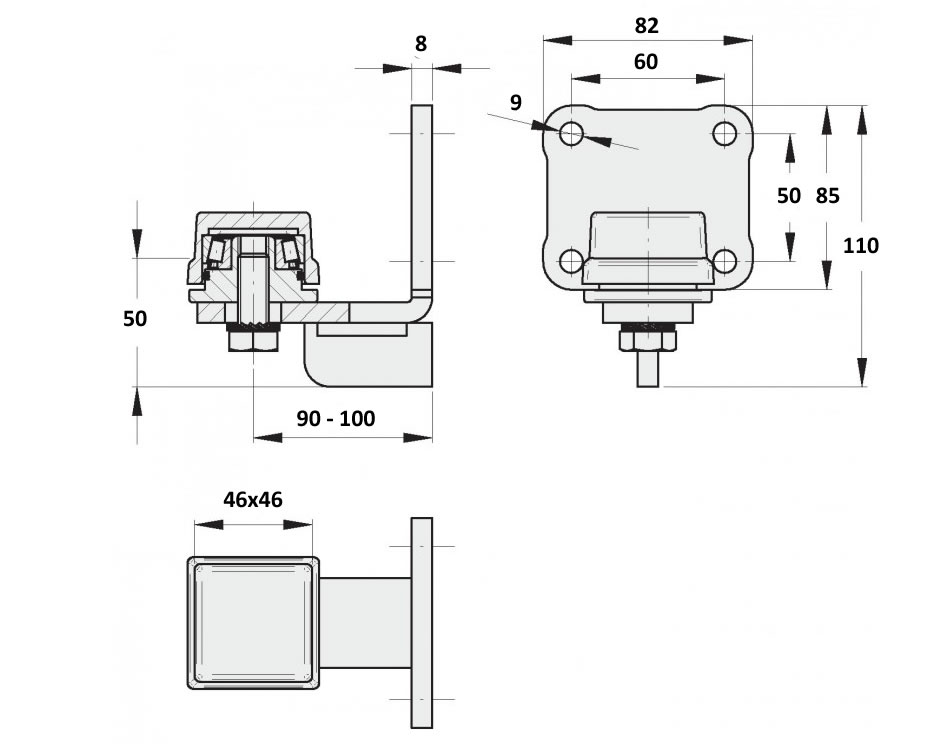

Hinge dimensions click here.

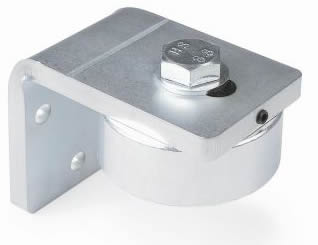

TOP BEARING HINGE - ITALIAN MADE

TOP BEARING HINGE
Heavy duty weld on hinge designed for smooth trouble free swing. Galvanised finish with adjuster for alignment. Suitable for very heavy wrought iron gates and as a top hinge for underground motors. Fully sealed bearings. Made in Italy. When used for wrought iron gates use bottom bearing hinge below.
TOPBEAR50MM - $70.40 each
Hinge dimensions click here.

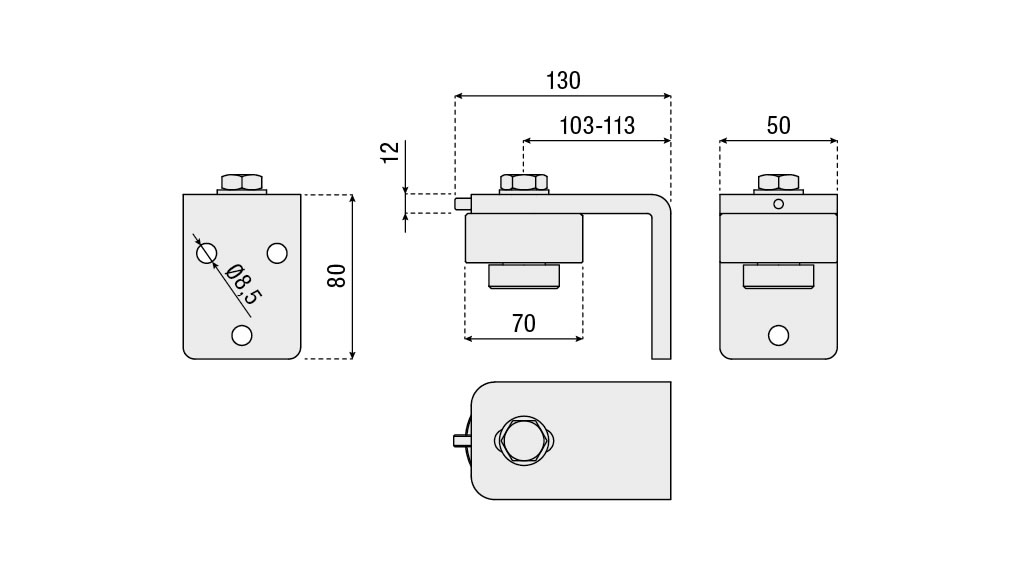

TOPBEAR70MM - $89.40 each
Hinge dimensions click here.

BOTTOM BEARING HINGE - ITALIAN MADE

BOTTOM BEARING HINGE
Heavy duty bottom bearing hinge for Top Bearing Hinge (above).
BOTBEAR50MM - $64.60 each Rating - 800kg

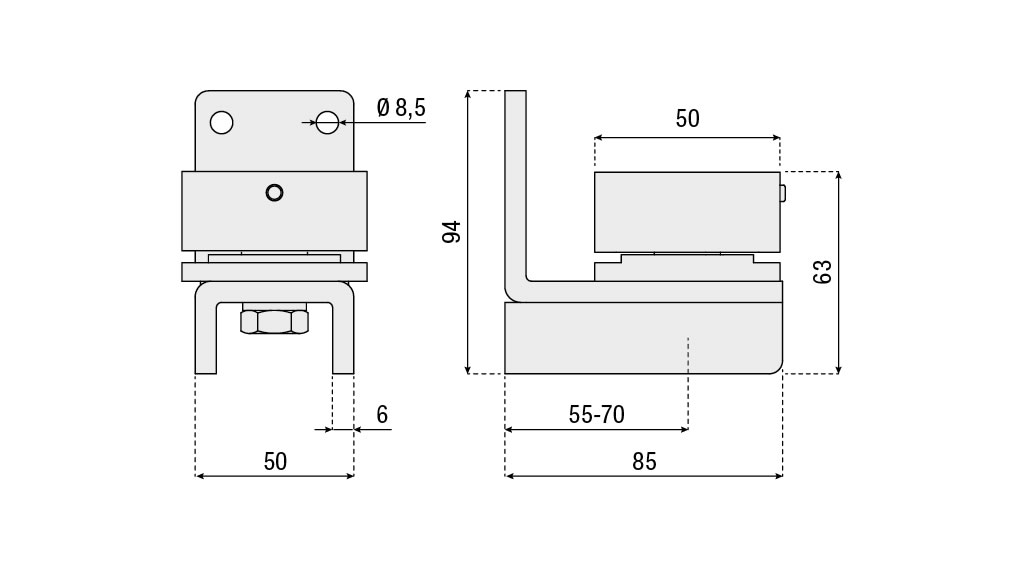

Hinge dimensions click here.

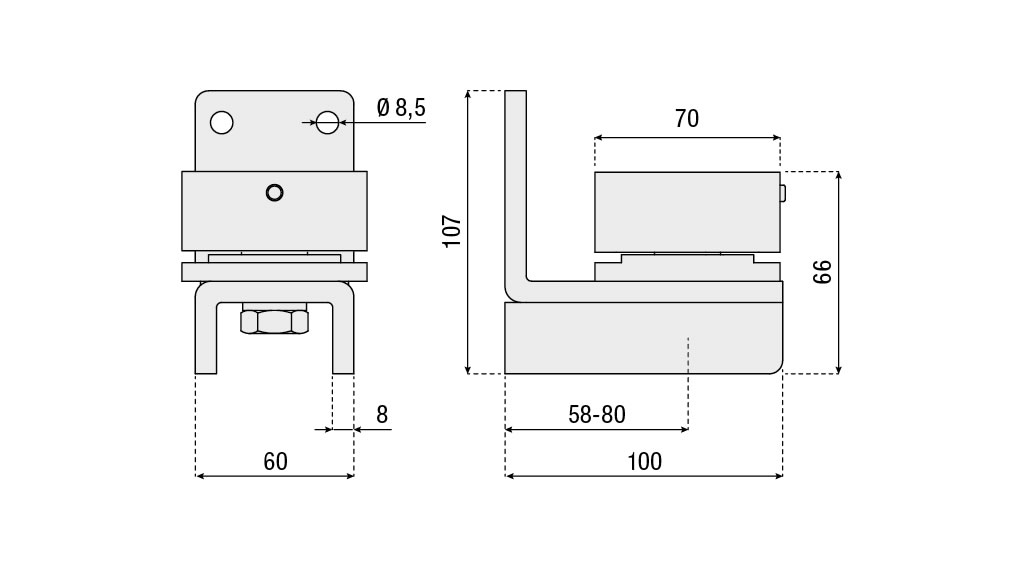

BOTBEAR70MM - $81.60 each Rating - 1800kg
Hinge dimensions click here.

BEARING HINGE PAIR - 50MM

BEARING HINGE PAIR
Heavy duty top and bottom bearing hinge pair available in both 50mm and 70mm sizes.
PAIRBEAR50MM - $53.00 each

BEARING HINGE PAIR - 70MM

Heavy duty top and bottom bearing hinge pair available in both 50mm and 70mm sizes.
PAIRBEAR70MM - $78.70 each

STEEL POST TO ALUMINIUM GATE HINGE

STEEL ALUMINIUM HINGE
Heavy duty weld on hinge designed for welding to an aluminium gate whilst the post bracket is steel for steel posts.
Fully sealed bearings
STALHINGE - $64.10 each

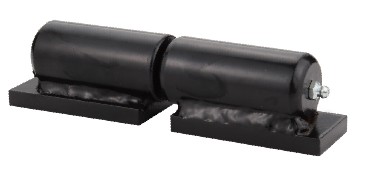

WELD ON BEARING HINGE

WELD HINGE
Weld on hinges with ball bearing and grease nipple.
BIGHINGE - $30.60 each
Rating - 400kg

WELD ON BEARING HINGE

WELD HINGE
Weld on hinges with ball bearing and grease nipple.
MEDHINGE - $18.00 each
Rating - 300kg

180-DEGREE OPENING HINGE

180HINGE
The versatile hinge in our range. The 180 hinge will do exactly that, allow your gate to hinge a full 180 degrees. Comes complete with brass bush and full sideways adjustment. Well built - will suit heavy gates.
180HINGE - $38.60 each.
Rating - 200kg

GTH100 GUDGEON HINGE

GTH100
Very popular hinge that has been around for many years. Perfect for our ready made gate range or our farm gates.
GTH100 - $32.00 each.

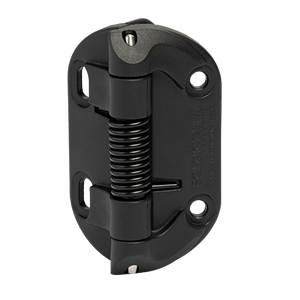

HEAVY DUTY NYLON SELF CLOSING HINGE

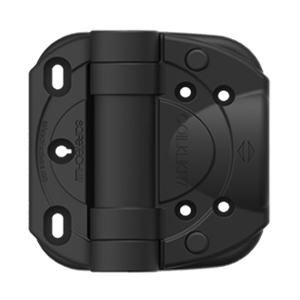

DPH210
This fully adjustable hinge is as tough as they come. No welding just bolt straight on. Suits gates to 45kg.
DPH210 - $62.60 pair

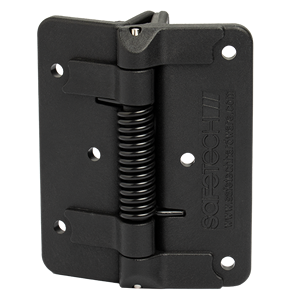

MULTIFIT HINGE

DPH110
The multi fit hinge is designed for light weight pool and pedestrian gates. Simple to fit and self closing
DPH110 - $32.70 pair.

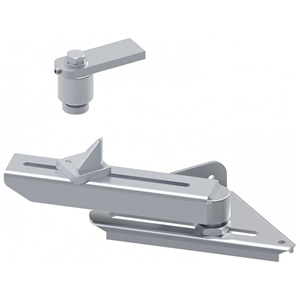

RISING HINGE KIT

RISING HINGES
When you have to consider a gate that opens uphill you normally only have one other option - outswing and it is a much better option but most local shire councils are not too keen on the idea. Rising gates have extra strain applied to your hardware and automation meaning more regular maintenance is required and careful attention to quality components is essential. These rising hinge sets  (top and bottom) can be coupled with motor kits like the PR24 using rising adaptor kits. Comes in left and right hand gate versions when looking from inside.
RISINGHINGELH or RISINGHINGERH  - $350.10 set.
