SLIDING GATE WHEELS
When you look for reliability in and automatic gateSliding gate wheels come in different sizes and with different bearing setups for different weight gates. You need to choose a wheel based on weight of your gate. Most come complete with mounting housing to insert into rectangular hollow sections.

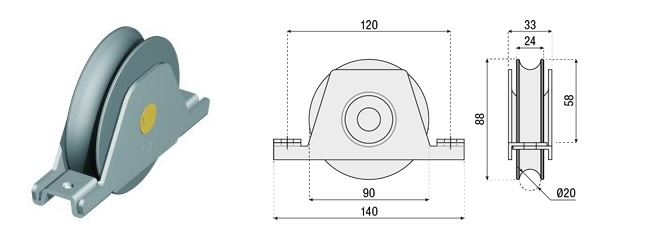

SLIDING GATE WHEEL 90MM ROUND

WHEELRND90

Galvanised wheel designed for round profile tracks. Complete in housing, 90mm diameter with a single sealed bearing. Fits into 76 x 38 RHS or 100 x 50 RHS or larger. Rated to 200kg each wheel.

WHEELRND90CH - $23.40 (Chinese Made)
WHEELRND90IT - $35.90 (Italian Made)

SLIDING GATE WHEEL 120MM ROUND

WHEELRND120

Galvanised wheel designed for round profile tracks. Complete in housing, 120mm diameter with a double sealed bearing. Fits into 100 x 50 RHS or larger. Rated to 400kg each wheel.

WHEELRND120CH - $42.30 (Chinese Made)
WHEELRND120IT - $62.00 (Italian Made)

SLIDING GATE WHEEL V GROOVE 90MM & 120MM

WHEELV

Galvanised wheel designed for angle profile tracks. Complete in housing, 90mm and 120mm diameter with a sealed bearing. Fits into 76 x 38 RHS or 100 x 50 RHS or larger. Rated to 200kg (90mm) and 400kg (120mm) each wheel.

WHEELV90IT - $34.70 (Italian Made)
WHEELV120IT - $50.50 (Italian Made)

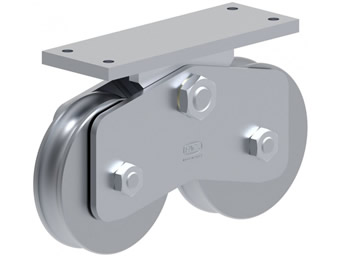

SLIDING GATE WHEEL DOUBLE IN ROCKER FRAME

WHEEL DOUBLE

Galvanised double wheel designed for round profile tracks.Complete in rocker frame makes it ideal for large industrial gates. Double sealed bearing to each wheel. Rated to 900kg each wheel.

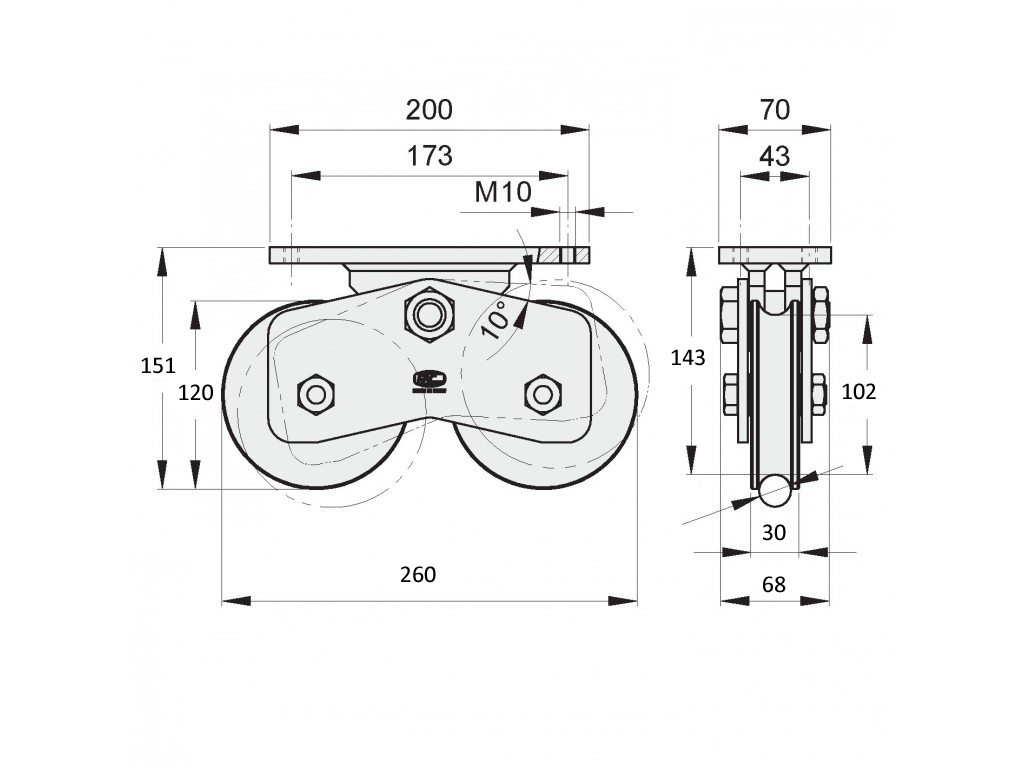

Dimensions chart click here.

WHEELDOUBLE - $306.90

SLIDING GATE WHEEL 120MM & 140MM ROUND

WHEEL- NO HOUSING

Galvanised wheel designed for round profile tracks. No housing 140mm diameter with a double sealed bearing. Fits into 100 x 50 RHS or larger. Rated to 500kg each wheel.

WHEELRND140NOCH - $43.50

OPTIONS
Choose from either bolt down track or concrete in track.
