AUTOMATIC GATE VEHICLE ACCESS CONTROL
Eloop
The e-Loop technology adapts state of the art magnetometers for detecting the presence of motor vehicles. Compared to traditional wired loop systems this is a far superior product, not being prone to ground movement, long and complex installation times and constant maintenance. This coupled with the radar technology used in our commercial presence mode e-Loops, makes for reliable and safe activations.

Our wireless technology uses state of the art bidirectional communication with high receiver gain and high security 128-bit encryption. This allows reliable communication amongst our devices, and a high security eco-system to keep your gates safe.

The extremely low power consumption of the e-Loop devices allows them to operate for years in the full operation modes. With easy to access battery compartments, this makes maintenance a breeze on all of our e-Loop products.

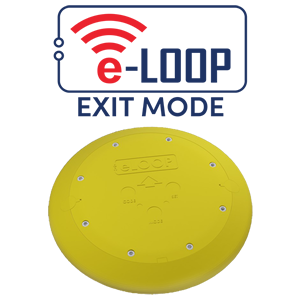

The e-Loop is a wireless vehicle detection sensor that uses passive sensing technology to detect large ferrous objects. The sensor measures the change in the Earth’s natural magnetic field caused by the introduction of a ferromagnetic object. The e-Loop provides the perfect replacement for inductive loop systems. Its unique design allows quick installation by fitting on top of driveway and secured down with 2 x concrete screws, installation can be as quick as 15 minutes.

The commercial e-Loop is a simple bolt in replacement for automatic vehicle detection systems. Simply connect it to your existing gate controller using our in house transceiver, or use one of our gate boards. The e-Loop (Presence Mode) utilizes magnetic sensor and radar detection technology to provide a reliable, safe and cost effective solution to automatic vehicle detection. With a battery life of up to six years and replaceable batteries, not only will you cut down on battery replacements, but no in ground installation is required Four e-Loop can be programmed to a single transceiver allowing effective cover for larger areas.

ELOOPEXITKIT - ELOOPEXIT and ETRANS50 transceiver. Exit mode. - $694.00
ELOOPEXIT - ELOOP in exit mode - $576.00
Eloop

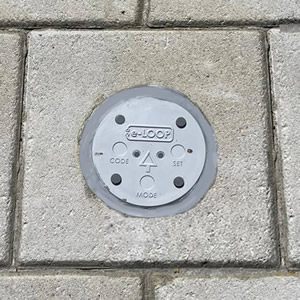

Introducing a new concept in wireless vehicle detection by Microtech Designs. The inground e-Loop replaces traditional wired inductive loops, saving time and money while increasing reliability .

Features
• Dual sensing technology
(available on the EL00IG-RAD model only)
• High security 128 bit encryption
• Quick and easy installation
• Recesses into driveway
• 14500 mA battery giving up to 10 years battery life
• Top access for changing battery

Kit Includes
• 1 x e-Loop wireless inground module
• 1 x single channel transceiver
• I x magnet

Installation in 3 simple steps
1.Code in the e-Loop
2. Core bore 89-92mm hole 70mm deep and secure using flexible mastic
3. Calibrate the e-Loop... and you’re ready to operate in less than 30 minutes.
Save many hours of installation time compared to wired loop systems.

ELOOPEXITKIT-IG - In Ground ELOOPEXIT and ETRANS50 transceiver. Exit mode. - $724.00
ELOOPEXIT-IG - In ground ELOOP in exit mode - $576.00
LOOP DETECTOR

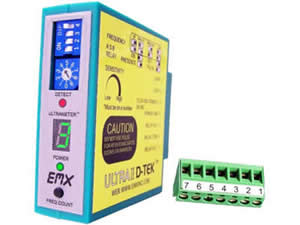

The Ultra II D-TEK Plug In Style Vehicle Loop Detector delivers the features and benefits found in the EMX ULTRA D-TEK to all operator controls that require a dry contact relay input. Sensitivity selection is simplified by the ULTRAMETER™, which displays the appropriate sensitivity setting to detect the vehicle positioned on the loop. Ten sensitivity settings enable finer adjustment of the detection level. And the four frequency settings provide greater flexibility in preventing cross talk in multi-loop applications.
LOOPDETECTOR - $312.00
LOOP CABLE

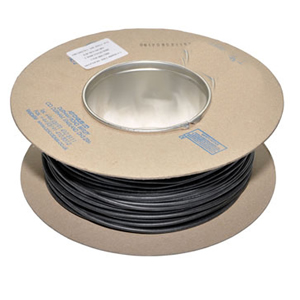

When installing a loop detector it is important to use a quality cable designed for inductive loops. These 100 metre rolls are Australian Standard loop cable.
LOOPCABLE - $202.20
VMD202

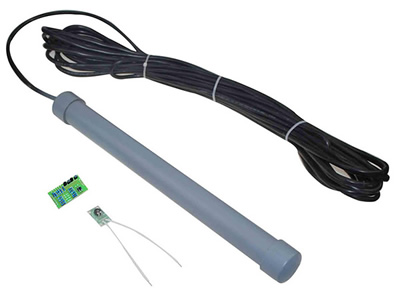

The EXITWAND is the perfect answer to sensing vehicle movement without the need to cut loops in your driveway or perhaps you simply cannot have a loop detector then the EXITWAND may solve the issue. It comes complete with 15 metres of cable and you simply run it down the side of the driveway and bury about 30cm deep. Has adjustable sensitivity and is the perfect answer for solar installations with a super low current draw.
EXITWAND - $446.00
