ASA300 AUTOMATIC GATE OPERATOR
12 VOLT ELECTRIC SWING GATE OPERATOR - RESIDENTIAL - 3.0 METRE LEAF
The ASA range of swing gate motors can be described as "old fashion" and it would be accurate to say that they are an older style of automatic gate motor but whilst many operators can boast style motors like the ASA300 can boast reliability through excellent design and manufacture. When you don't spend millions of dollars chasing style it reflects in the price. If you compare the ASA300 against similar specified Italian or European made motors it will win on price and reliability every time. Manufactured in Italy the ASA300 is a powerful 12 volt swing gate electro mechanical operator suitable for gates to 3.0 metres wide. It is a self locking operator with key operated manual override and one of the benefits of the 12 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.
It is possible to use a variety of control boards to control the ASA300 and we have developed some excellent solar powered applications. The factory designed board is the ID200 and can be used in a number of different modes and as a one or two motor controller complete with code hopping receiver. Another option is the LOGICEGATE1224 control board with an intuitive screen that asks you questions to program. Both available as double gate kits with great kit savings. To see the solar powered kits click here.
It is possible to use a variety of control boards to control the ASA300 and we have developed some excellent solar powered applications. The factory designed board is the ID200 and can be used in a number of different modes and as a one or two motor controller complete with code hopping receiver. Another option is the LOGICEGATE1224 control board with an intuitive screen that asks you questions to program. Both available as double gate kits with great kit savings. To see the solar powered kits click here.
PRICING

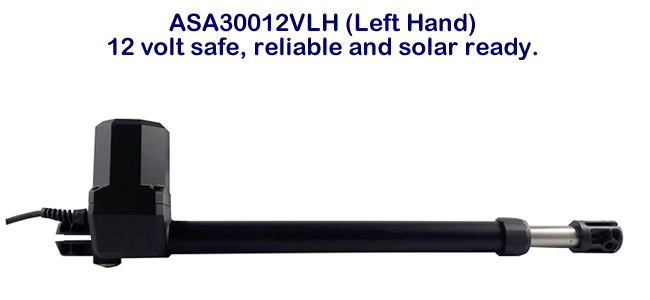

ASA30012VLH -
Single operator left hand
$584.00

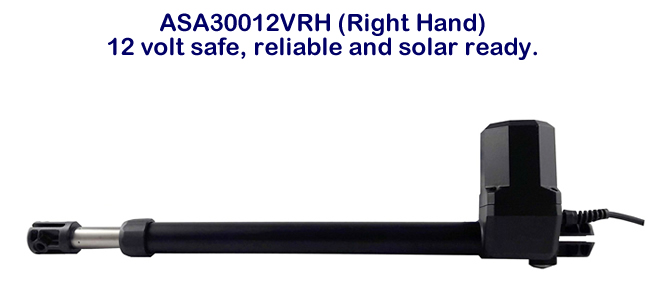

ASA30012VRH -
Single operator right hand
$584.00
LOGICID200 -
Logic control for one or two motors with receiver.
$386.00
REMGR -
4 channel 433mhz key ring style remote control.
$55.00
KEYPADP6 -
Wireless outdoor keypad
$146.00
BATT12V7AH -
Battery backup for LOGICID200
$56.00
SOLAROPT1225 -
25W panel, 26ah battery, regulator, battery enclosure and full mounting post.
$936.00
OUTSWING -

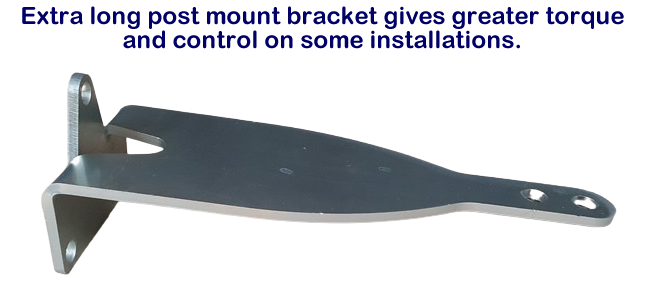

Zinc dipped 8mm solid steel outswing bracket
$74.00
ASA300DBLEKIT -
Double gate kit with ID200 logic control and two remotes.
$1498.00
IDSOLARDOUBLE -
Double gate solar powered kit with ID200 logic control and two remotes.
$1974.00
SPECIFICATION
Motor Voltage -
12 volts DC
Current Standby -
0mA
Current at use -
2.0A
Motor power -
70W
Maximum thrust -
1500Nm
Opening Time 90 degrees -
16.0 seconds
Maximum gate width -
3000 mm
Duty cycle -
90%
Height -
195mm
Width -
90mm
Length -
670mm
Weight -
7.0 Kg
IP rating -
IP54
DOWNLOAD & MANUALS RESOURCE PAGE
OPTIONS
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
