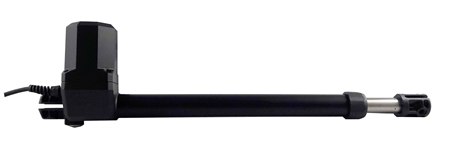

ASA600 AUTOMATIC GATE OPERATOR
12 VOLT ELECTRIC SWING GATE OPERATOR - RESIDENTIAL - 5.0 METRE LEAF
The big, long ASA600 has been used in so many solar kit farm gates that we have lost count. The reason? Price and reliability. The ASA600 is great value for money with a quality Italian 12 volt motor and tried and tested engineering. Marry that to our proven solar technology and you have a winning combination. Manufactured in Italy the ASA600 is a powerful 12 volt swing gate electro mechanical operator suitable for gates to 5 metres wide. It is a self locking operator with key operated manual override although you would still use an electric gate lock as the ASA600 is typically installed on gates wider than 2.0 metres where the electric gate lock is necessary. One of the benefits of the 12 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.
It is possible to use a variety of control boards to control the ASA600 and we have developed some excellent solar powered applications. The factory designed board is the ID200 and can be used in a number of different modes and as a one or two motor controller complete with code hopping receiver. Another option is the LOGICEGATE1224 control board with an intuitive screen that asks you questions to program. Both available as double gate kits with great kit savings. To see the ASA600 solar kits click here.
It is possible to use a variety of control boards to control the ASA600 and we have developed some excellent solar powered applications. The factory designed board is the ID200 and can be used in a number of different modes and as a one or two motor controller complete with code hopping receiver. Another option is the LOGICEGATE1224 control board with an intuitive screen that asks you questions to program. Both available as double gate kits with great kit savings. To see the ASA600 solar kits click here.
PRICING
ASA60012VLH -
Single operator left hand
$607.00
ASA60012VRH -
Single operator right hand
$607.00
LOGICID200 -
Logic control for one or two motors with receiver.
$386.00
REMGR -
4 channel 433mhz key ring style remote control.
$55.00
KEYPADP6 -
Wireless outdoor keypad
$146.00
BATT12V7AH -
Battery backup for LOGICID200
$56.00
SOLAROPT1225 -
25W panel, 26ah battery, regulator, battery enclosure and full mounting post.
$936.00
OUTSWING -
Zinc dipped 8mm solid steel outswing bracket
$74.00
ASA60012LHKIT -
Left hand kit with motor, ID200 logic control and two remotes.
$993.00
ASA60012RHKIT -
Right hand kit with motor, ID200 logic control and two remotes.
$993.00
IDSOLAR600LH -
Left hand solar powered kit with ID200 logic control and two remotes.
$1469.00
IDSOLAR600RH -
Right hand solar powered kit with ID200 logic control and two remotes.
$1469.00
SPECIFICATION
Motor Voltage -
12 volts DC
Current Standby -
0mA
Current at use -
2.0A
Motor power -
70W
Maximum thrust -
1500Nm
Opening Time 90 degrees -
31.0 seconds using the full stroke
Maximum gate width -
5000 mm
Duty cycle -
90%
Height -
195mm
Width -
90mm
Length -
970mm
Weight -
7.0 Kg
IP rating -
IP54
DOWNLOAD & MANUALS RESOURCE PAGE
OPTIONS
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
