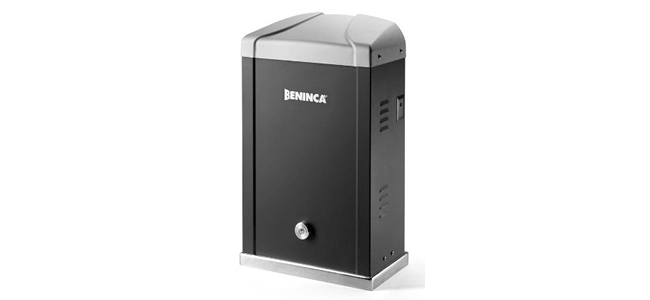

BISON25 SLIDING AUTOMATIC GATE OPENER
When you look for reliability in and automatic gate motor you have to look at anything Beninca and the BISON sliding gate openers are no exception. The BISON25 is a 240 volt motor designed for industrial sliding gates up to 2500kg in weight.
240 VOLT SLIDING ELECTRIC GATE OPERATOR- COMMERCIAL / INDUSTRIAL - 2500KG

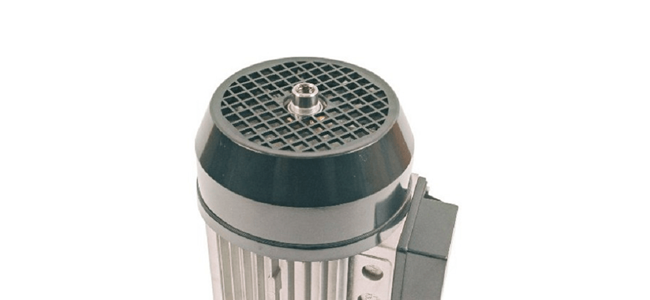

  • Reliability of Gearmotors in oil bath
  • Robust, cataphoresis- treated polyester paint sheet housing for heavy-duty applications of industrial type

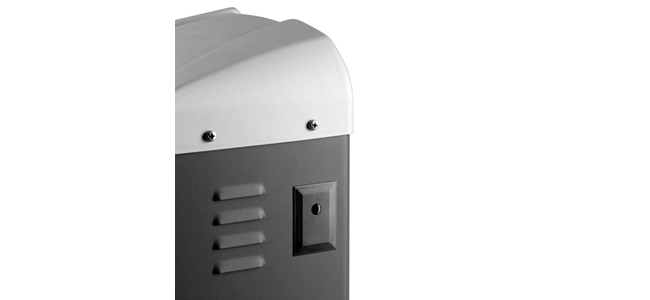

  • Manual release with key for max. security
  • Standard encoder (Obstacles detection sensor) for max. anti crushing operation safety
  • Inbuilt control unit for all demanding functions
  • PRICING
    This product has free delivery when ordered online.
    BISON25 -
    Motor complete with logic control board and base plate
    $3225.00
    BUY ONLINE
    REMBENINCA -
    2 channel 433mhz key ring style remote control.
    $57.00
    BUY ONLINE
    RACKSTEEL -
    One metre lengths of steel rack with adjustable fixing angle.
    $40.00
    BUY ONLINE
    SPECIFICATION
    Motor Voltage -
    3 Phase motor - Only 240 volt input required
    Current Standby -
    100mA
    Current at use -
    8.0A
    Motor power -
    80W
    Maximum thrust -
    2500Nm
    Operating speed -
    7-19 metres per minute (adjustable)
    Maximum gate size -
    2500 kg
    Duty cycle -
    75%
    Height -
    612mm
    Width -
    333mm
    Depth -
    278mm
    Weight -
    31 Kg
    IP rating -
    IP44
    DOWNLOAD & MANUALS
    BROCHURE -
    Click here to download the brochure.
    MOTOR MANUAL -
    Click here to download the installation manual.
    LOGIC CONTROL MANUAL -
    Click here to download the logic control manual.
    OPTIONAL
    RACK - Most sliding gate systems require rack (There are a few chain drive operators for industrial gates). Available in steel reinfoced nylon for gates up to 800 kilograms and a larger galvanised steel version for heavier industrial gates. One metre lengths with easy fix points. Click to view.

    PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. Click to view.

    MAINS POWER FILTER - Gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics. There is more information here.
