DUIT24NVE SWING GATE AUTOMATIC GATE OPERATOR
The DUIT24NVE is an underground automatic gate opener designed for electric gates up to 3.5 metres wide with a whisper quite and powerful 24 volt motor.
24 VOLT SWING ELECTRIC GATE OPERATOR - RESIDENTIAL / COMMERCIAL - 3.5 METRE LEAF

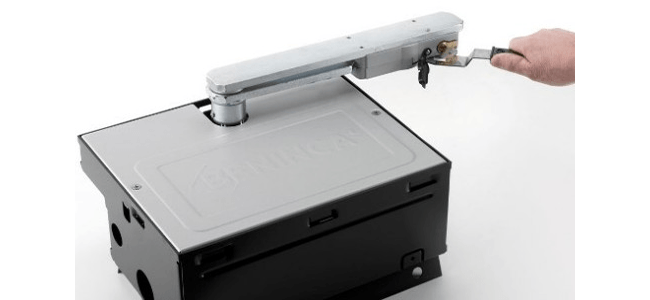

Every time you see automatic gates at the movies they always seem to be double opening gates and there is not a gate motor in site. That's because they are underground! That's right, motors like the DUIT24NVE sit under the gate completely hidden from view and they work like magic. They are whisper quite and definitely the rolls royce of automatic swing gate motors. Using underground motors however requires a bit of planning, correct construction of your gates and a bit more installation work. The rewards are numerous not the least being you do not need posts, your gates can be fitted directly to your brick pier or wall and you do not lose the room normally taken up by a post. Manufactured in Italy the DUIT24NVE is a 24 volt swing gate electro mechanical operator complete with a foundation box made from steel and designed to be installed under ground. No side room is a major feature of this operator needing virtually no posts or side room at all. The operator installs neatly below the gate. The DUIT24NVE is a self locking operator with key operated manual override. It is suitable for gates to 3.5 metres wide and has built in opening stops. The DUIT24NVE kit comes as two boxes, the motor itself and the foundation box. The DUIT24NVE uses the BRAINY logic controller with built in wireless receiver. The BRAINY logic controller has full features including end travel slow down.

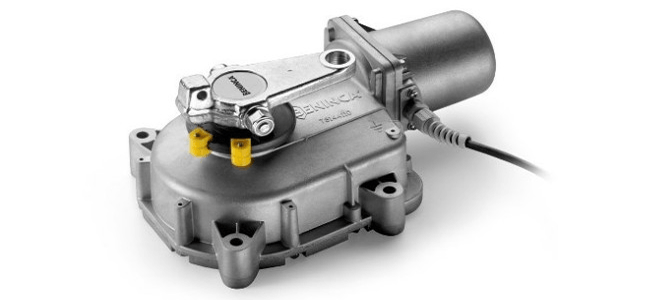

Motor - single side.

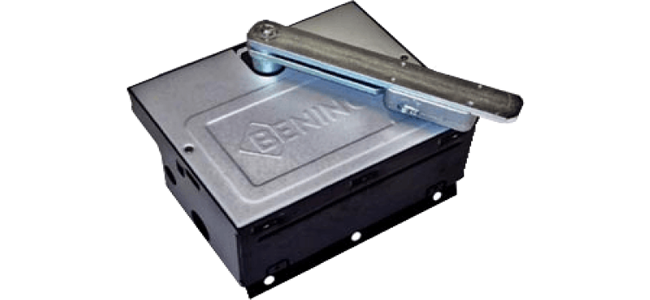

Foundation box - single side.
Release for 90 degree opening - single side.
Release for 180 degree opening - single side.
Logic control for one or two BOB motors
2 channel 433mhz key ring style remote control.
BENINCA wireless outdoor keypad
2 x 10W panel, 2x26ah battery galv enclosure and full mounting post.
2 x 25W panel, 2x26ah battery, regulator, galv enclosure and full mounting post.
Zinc dipped 8mm solid steel outswing bracket
Motor Voltage -
24 volts DC
Current Standby -
Current at use -
Maximum thrust -
Opening Time 90 degrees -
15 seconds (90 degrees)
Maximum gate width -
Duty cycle -
10.0 Kg (Motor)
IP rating -
DOWNLOAD & MANUALS
MOTOR MANUAL -
LOGIC CONTROL MANUAL -
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here
