ELECTRABOLT GATE LOCK

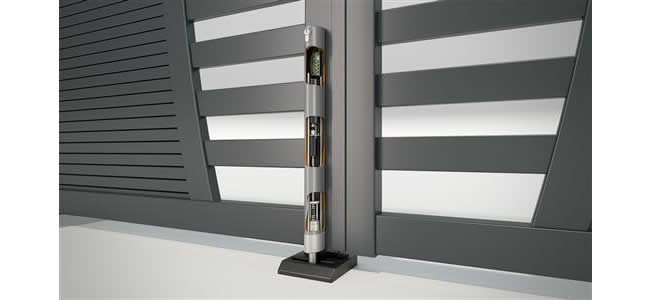

The ELECTRABOLT combines robust engineering and state-of-the-art innovation. With a sleek design, the electric drop bolt seamlessly integrates into your gate system, offering a discreet yet powerful safeguard.
Lifting force 30N.
Overcurrent trip:
Auto stop on ground or limit detection via overcurrent sensing technology.
Current:
Standby 140mA.
Peak Draw 280mA.
Operation 210mA.
Battery backup time: Rechargeable lithium battery provides up to 4 days of standby and 10-20 operations.
Trigger method: No relay needed between gate controller and lock. Connect direct to either flashing beacon output, or courtesy light output.
Manual override: yes.
Pin: 150mm Stroke - 20mm diameter stainless steel pin.
Stainless steel: Marine grade Stainless steel.

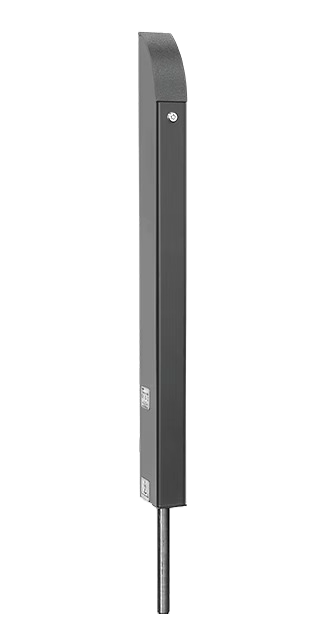

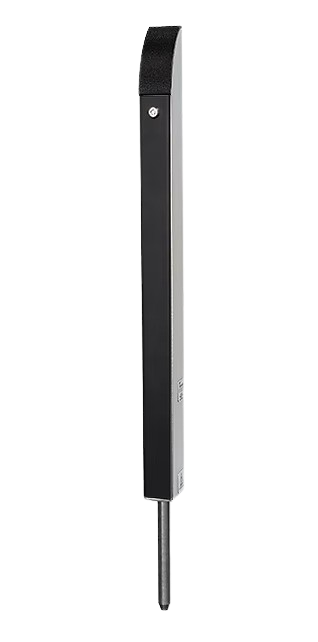

ELECTRABOLT Electric drop bolt lock - $1575.00
SABO Adjustable double gate stop for dropbolts - $107.00

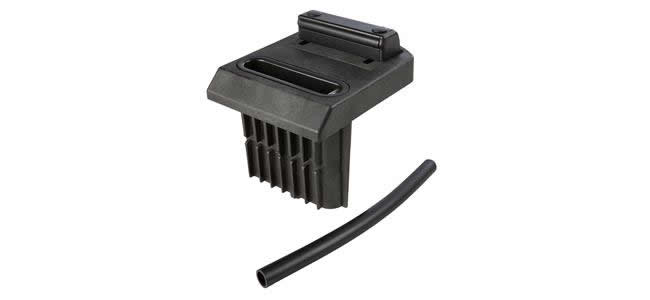

OGS Drop bolt sleeve with stop - $117.00

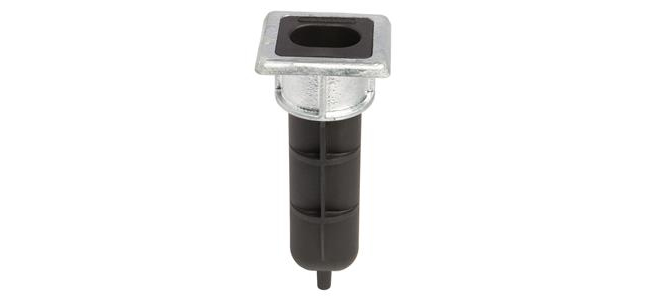

EGS Drop bolt sleeve no stop - $35.00
