ELECTRICAL ENCLOSURES
With solar installations and some large installations it is professional and sensible to house all your controls and batteries in a single enclosure. These big galvanised enclosures are Australian made and great value for money. They keep things safe and dry and can be locked for security.
ENCLOSURE

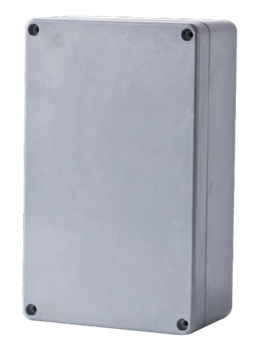

Allbro GRP Terminal Enclosures IP68

High Impact Electrical Terminal Box Enclosure for Tough Environments.
TERMINALSMALL - 250 high x 255 wide x 163 deep - $123.00
TERMINALLARGE - 250 high x 400 wide x 163 deep - $150.00
ENCLOSURE

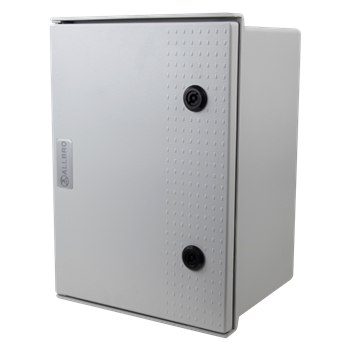

Allbrox 4 Deep GRP IP66 Enclosure complete with DMC Device Plate and Stainless Steel Mounting Brackets 400H x 300W x 200D

The Allbrox GRP Electrical Enclosure is a high quality wall mounted electrical enclosure with a hinged door, quarter turn locking, and internal device mounting plate. Stainless Steel hinges and wall mounting brackets are supplied standard with each enclosure.
This is a high quality enclosure finished with a high quality wind turbine coating.
Material: GRP (Sheet Moulding Compound), Coated with Relius Coatings RELEST® Wind I306 Colour
Operating Temperature: -50° C to + 200° C
Glow Wire Capability / Flammability: 960° / UL94 V0
Expected UV Life (Direct Exposure) 25 Years
IP Protection: IP66
ALLBROX4 - 400 high x 300 wide x 200 deep - $238.00
ENCLOSURE

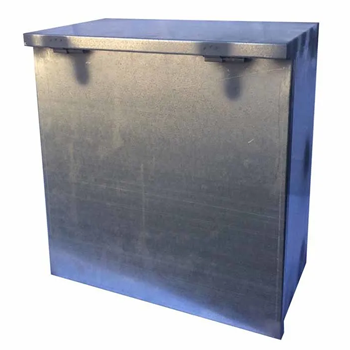

Large Tough Galvanised Enclosures

Built to handle big solar batteries with room to spare for controllers and accessories these galvanised enclosures will handle the weight and the conditions. Built right here in Australia.
FEDERAL4 - Large 450 wide x 450 high x 250 deep galv enclosure $221.00
FEDERAL5 - Medium 450 high x 225 wide x 250 deep galv enclosure - $215.00

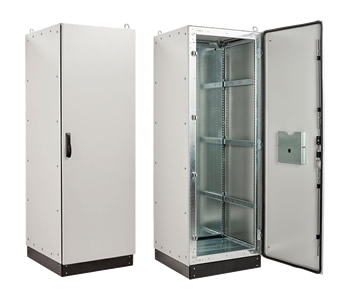

Freestanding Enclosure

Free standing electrical enclosure - Perfect for large scal solar installations can house batteries and control gear in a safe and secure manner.

IP Enclosures MF1S range of powder coated galvanised steel floor standing electrical cabinets for low voltage switchgear and control gear assemblies are suitable for general industrial applications. All IP Enclosures are built to precision to ensure high quality standards.

Features & Specifications
Protection: Complies with IP55
(Independent accredited test laboratory)
Standard: IEC62208, AS/EN/IEC60529, RoHS
(IEC/EN/AS61439 Compliant)
Material:
– Main Frame: 2.0mm Galvanised Steel W Profile System
– Side, Rear & Roof Panels: 1.2mm Powder Coated Galvanised Steel Sheet
– Front Door: 2.0mm Powder Coated Galvanised Steel Sheet
– Mounting Plates: 1.5mm – 2.0mm Galvanised Steel Sheet
– Seal: EPDM
Main Frame: The robust modular main structure is fabricated using 2.0mm
galvanised steel sheet W Profile system with 20mm hole pattern.
Door: The robust door is fabricated using 2.0mm powder coated galvanised
steel sheet and incorporates four concealed reversible hinges. The door is
designed for a 135° opening. Each door contains earth studs and an A4
document pocket.
Side, Rear and Roof Panels: Removable panels are fabricated using
1.2mm powder coated galvanised steel sheet.
Base: Base is 100mm
Door Seal: High quality EPDM replaceable door seal.
Lock: 4 point locking system with key-lock swing handle.
Device Mounting Plate: The device mounting plate is fabricated using
1.5-2.0mm mm galvanised steel sheet, pressed to provide additional
strength.
Earthing: All panels are earthed to provide earthing continuity.
Surface Treatment: UL approved epoxy polyester powder coated with a
textured finish. 80-120 micron average thickness.
– Standard Colour: RAL7035
– Colour of Base: RAL9005


FREESTANDENC - 1620 high x 600 wide x 400 deep - $3026.00
