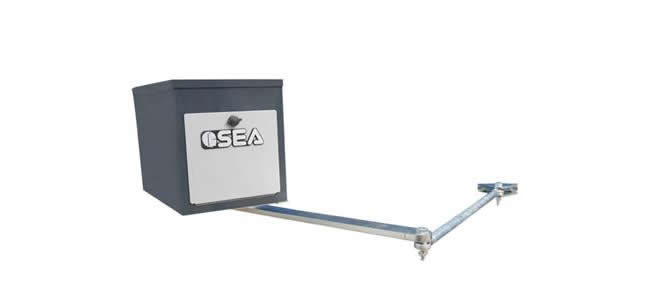

Joint Swing Automatic Gate Operator
The Joint is the biggest articulated automatic gate opener in our range. It is a hydraulic operator designed for high duty cycle commercial, industrial and residential electric driveway gates up to four metres wide.
240 VOLT HYDRAULIC GATE OPERATOR - COMMERCIAL / INDUSTRIAL - 4.0 METRE LEAF
  • Suitable for installation on large columns where the distance D is less 45 cm

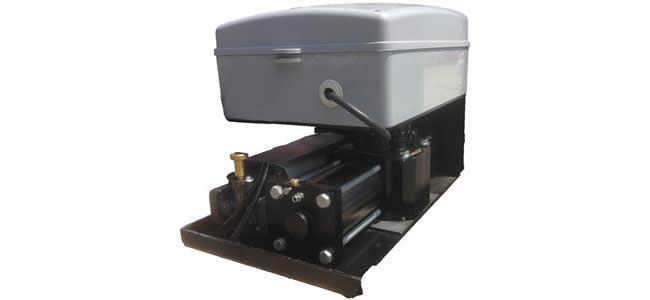

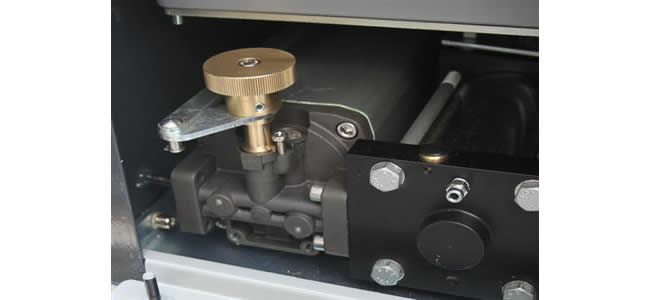

  • Very quiet, powerful and reliable hydraulic operator
  • Speed of 8 sec at 90 °
  • Slowdown during opening and closing
  • Integrated control unit

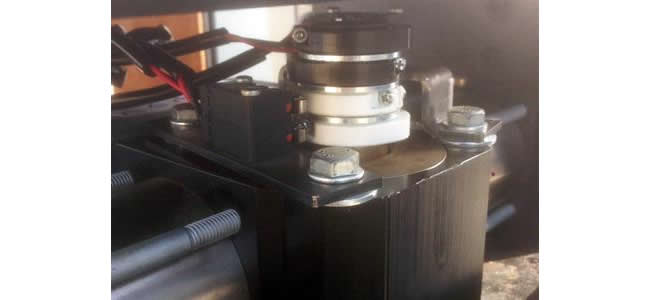

  • Internal limit switch system with cams
  • Metal cover with treatment and powder painting
  • Possible configuration Master/Slave
  • On request PLUS version for higher speed or higher torque.
  • PRICING
    This product has free delivery when ordered online.
    JOINTMASTER -
    Single operator with logic controller
    $3254.00
    BUY ONLINE
    JOINTSLAVE -
    Single operator without logic controller
    $2792.00
    BUY ONLINE
    RECSEAPLUG -
    Plug In wireless receiver
    $100.00
    BUY ONLINE
    REMSEA -
    4 channel 433mhz key ring style remote control.
    $57.00
    BUY ONLINE
    SEAKEYPAD -
    SEA wireless outdoor keypad
    $248.00
    BUY ONLINE
    SPECIFICATION
    Motor Voltage -
    240 volts AC
    Current Standby -
    1000mA
    Current at use -
    6.0A
    Motor power -
    120W
    Opening Time 90 degrees -
    8-10 seconds to 90 degrees
    Maximum gate width -
    4000 mm
    Duty cycle -
    40 operations per hour
    Height -
    305mm
    Width -
    255mm
    Depth -
    480mm
    Weight -
    25.0 Kg
    IP rating -
    IP44
    DOWNLOAD & MANUALS
    MOTOR MANUAL -
    Click here to download the installation manual.
    LOGIC CONTROL MANUAL -
    Click here to download the logic control manual.
    BROCHURE -
    Click here for a brochure.
    OPTIONS
    PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.

    ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
