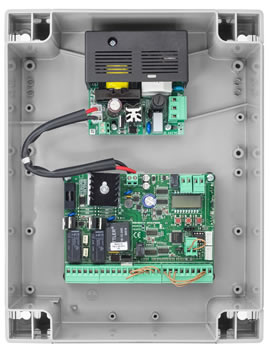

LOGIC BENINCA 24 AUTOMATIC SWING GATE CONTROLLER

PROGRAMMABLE 24 VOLT LOGIC CONTROLLER FOR SINGLE OR DOUBLE SWING GATES

The LOGICBENINCA24 is the sort of board you notice the professional installers use. Why? Simple ease of installation - loads of control and the ability to fine tune the installation through easy programming functions.

Almost every option and control you can think of are covered in this control board giving the ultimate in control over a low voltage installation. Whilst many boards are designed around a particular motor this board can be used for generic use.

LOGICBENINCA24 -

Logic control for one or two BOB motors

$840.00

REMBENINCA -

2 channel 433mhz key ring style remote control.

$69.00

BENINCAKEYPAD -

BENINCA wireless outdoor keypad

$415.00

Motor Voltage -

24 volts DC - Single or double

Current Standby -

30mA

Battery Backup -

Built In

Dimensions -

225mm x 305mm x 125mm

Photocell In Close -

Yes x two

Photocell In Open -

Yes (Optional) x two

Photostop Input -

Programmable

Stop Input -

Yes

Limit Switch Inputs -

Yes (Optional)

Encoder Inputs -

Yes (Optional)

Open Stop Close Input -

Yes

Separate Close Input -

Yes

Automatic Close -

Yes

Security Close -

Yes

Pedestrian Input -

Yes

Buzzer Output -

No

Flashing Light Output -

Yes

Courtesy Light Output -

Yes

Pedestrian Via Receiver -

Yes

Electronic Force Adjust -

Yes

Slow Speed In Approach -

Yes

Slow Speed Adjustable -

Yes

Dual Wing Delay -

Yes

Wing Delay Adjustable -

Yes

Electric Lock Output -

Yes

Lock Thrust Release -

Yes

Thrust To Lock -

Yes

LOGIC CONTROL MANUAL

Click here to download the logic control manual.

LOGIC CONTROL VIDEO -

You can watch a short video on the BRAINY here.

PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.

ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
