LOGIC CB6 AUTOMATIC SWING GATE CONTROLLER
240 VOLT LOGIC CONTROLLER FOR SINGLE OR DOUBLE SWING GATES
The CB6 is a truly remarkable board if for no other reason than it's longevity in today's fast paced world. The CB6 is an Australian designed product which has been the mainstay of control boards for many years and still to this day despite being outdated is the preferred board of many.
As a professional installer we often refer to it as the "get out of trouble board" because it is true that it's simplicity will often be what you need when today's much more technically sensitive boards will not cope.

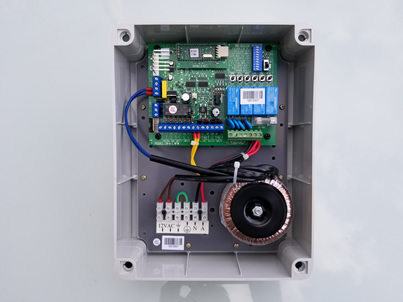

The CB6 comes in an outdoor enclosure with a built in transformer power supply. It should also be noted that whilst it is primarily a swing gate control board it can be used on sliding gates and also configured to control 3 phase gates and 24 volt gates. Now that's versatile.
As a professional installer we often refer to it as the "get out of trouble board" because it is true that it's simplicity will often be what you need when today's much more technically sensitive boards will not cope.
The CB6 comes in an outdoor enclosure with a built in transformer power supply. It should also be noted that whilst it is primarily a swing gate control board it can be used on sliding gates and also configured to control 3 phase gates and 24 volt gates. Now that's versatile.
PRICING

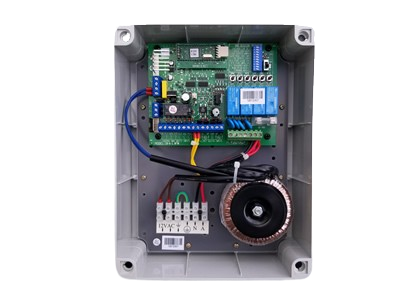

LOGICCB6 -
Logic control for one or two motors
$956.00
RECTAUKIT -
Two channel receiver and two four channel transmitter
$253.00
SPECIFICATION
Motor Voltage -
240 volts AC - Single or double
Current Standby -
85mA
Dimensions -
200mm x 300mm x90mm
Photocell In Close -
Yes
Photocell In Open -
No
Photostop Input -
No
Stop Input -
Yes
Limit Switch Inputs -
Yes (optional)
Encoder Inputs -
No
Open Stop Close Input -
Yes
Separate Close Input -
Yes
Automatic Close -
Yes
Security Close -
Yes
Pedestrian Input -
Yes
Buzzer Output -
No
Flashing Light Output -
Yes with module
Courtesy Light Output -
No
Pedestrian Via Receiver -
No
Electronic Force Adjust -
No
Slow Speed In Approach -
No
Slow Speed Adjustable -
No
Dual Wing Delay -
Yes
Wing Delay Adjustable -
Yes
Electric Lock Output -
Yes
Lock Thrust Release -
Yes
Thrust To Lock -
Yes
DOWNLOAD & MANUALS
LOGIC CONTROL MANUAL -
OPTIONS
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
