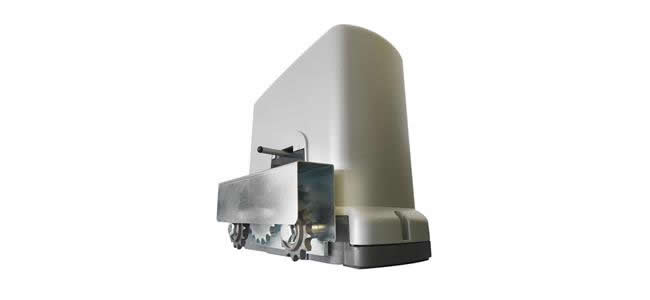

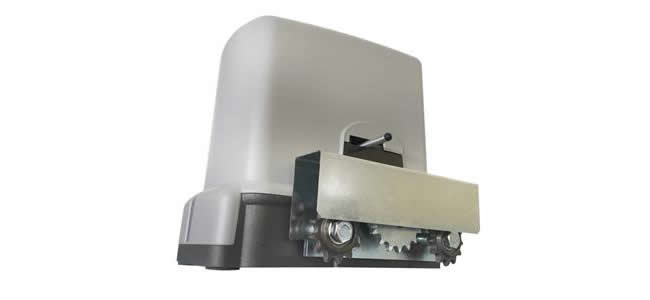

MASTER20CHAIN SLIDING AUTOMATIC GATE KIT
Designed for residential, industrial and commercial sliding gates the Master chain drive operator is an automatic gate opener for sliding electric gates up to 2000kg in weight. Drive is by a powerful 240 volt motor making it ideal choice for sites with slopes.
240 VOLT SLIDING ELECTRIC GATE MOTOR - RESIDENTIAL / COMMERCIAL / INDUSTRIAL - 2000KG
Sliding gates on uneven ground, slopes or hills can and do cause grief without careful motor selection. In particular we need to be able to control the uneven ground and control and stop the gate in the downhill run. This is where the MASTER20CHAIN comes in handy. Typical TAU quality shows up everywhere on the Master. Start with a powerful quality built 240 volt motor married to a typically tough TAU gearbox - add the control board complete with electronic braking and you have one very desirable operator ready for big gates and sloping sites. External finish is the typical TAU high standard with aluminum chassis.
PRICING
MASTER20CHAIN -
Sliding gate motor with logic control
$1447.00

CHAINENDS -
Pair of end clamps for chain drive. Pair required.
$166.00

CHAIN5M -

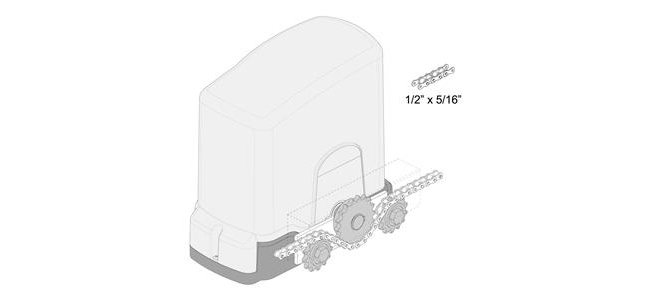

Five metre lengths of chain. Gate requires width plus 1 metre.
$150.00

REMTAUSLIM -
2 channel 433mhz key ring style remote control.
$57.00

TAUKEYPAD -
TAU wireless outdoor keypad
$238.00

SPECIFICATION
Motor Voltage -
240 volts AC
Current Standby -
70mA
Current at use -
3.4A
Motor power -
550W
Maximum thrust -
1890N
Operating speed -
11 metres per minute
Maximum gate size -
2000 kg
Duty cycle -
40%
Height -
325mm
Width -
360mm
Depth -
221mm
Weight -
13.6 Kg
IP rating -
IP44
DOWNLOAD & MANUALS
MOTOR MANUAL -
Click here to download the installation manual.
LOGIC CONTROL MANUAL -
Click here to download the logic control manual.
OPTIONAL

PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. Click to view.

MAINS POWER FILTER - Gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics. There is more information here.
