PR24 FOR SWING GATES TO 3.0 METRES EACH IN WIDTH

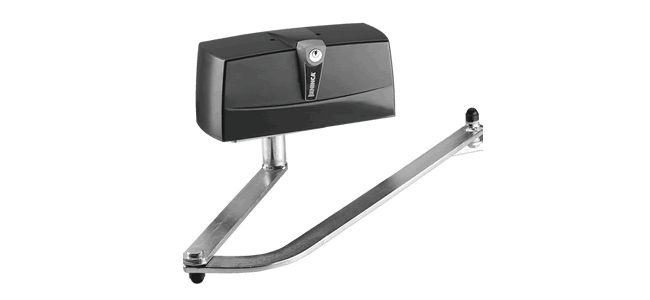

The PR24 is an articulated arm operator and is suitable for gates to 3.0 metres wide with limit switches.
24 VOLT ELECTRIC SWING GATE OPERATOR - RESIDENTIAL - 3.0 METRE LEAF
Manufactured in Italy by Beninca the PR24 is a harmonic style or articulated 24 volt swing gate electro mechanical operator suitable for gates to 3.0 metres wide. It is a non reversible operator with manual override key and limit switches. One of the benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override. This style of swing gate operator demands strong components and as always Beninca have over
engineered with the use of tempered steel prominent.
The PR24 is best married to the BENINCA control board commonly called "Brainy". Brainy has a full host of functions to give total control over performance and slow down functions. Available as the PR24 operator only for use with existing or other control systems the PR24 also comes as a kit with two operators, Brainy logic control and two remote controls.
The PR can also be mounted long version rather than wide by using the PRPLKIT. You can view a PDF here.
Another option is the PRBSKIT which is a low side room kit. PDF view here.
The PR can be used with rising hinge sets for gates that must open into a rising driveway. The PRSN kit can be viewed here.
The PR24 is best married to the BENINCA control board commonly called "Brainy". Brainy has a full host of functions to give total control over performance and slow down functions. Available as the PR24 operator only for use with existing or other control systems the PR24 also comes as a kit with two operators, Brainy logic control and two remote controls.
The PR can also be mounted long version rather than wide by using the PRPLKIT. You can view a PDF here.
Another option is the PRBSKIT which is a low side room kit. PDF view here.
The PR can be used with rising hinge sets for gates that must open into a rising driveway. The PRSN kit can be viewed here.
PRICING
PR24 -
Single operator for gates to 3.0 metres wide
$1353.00
LOGICBENINCA24 -
Logic control for one or two BOB motors
$840.00
REMBENINCA -
2 channel 433mhz key ring style remote control.
$69.00
BENINCAKEYPAD -
BENINCA wireless outdoor keypad
$415.00
PRPLKIT -
Side mount kit for the PR operator.
$103.00
PRBSKIT -
Restricted side room kit for the PR operator.
$340.00
PRSNKIT -
Rising hinge and gate adaptor for the PR Operator.
$238.00
SOLAROPT2425 -
2 x 25W panel, 2x26ah battery, regulator, galv enclosure and full mounting post.
$1197.00
SPECIFICATION
Motor Voltage -
24 volts DC
Current Standby -
0mA
Current at use -
9.0A
Maximum thrust -
320Nm
Opening Time 90 degrees -
9 seconds
Maximum gate width -
3000 mm
Duty cycle -
80%
Height -
160mm
Width -
332mm
Length -
165mm
Weight -
13 Kg
IP rating -
IP44
DOWNLOAD & MANUALS RESOURCE PAGE
OPTIONS
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
