R18FAST SWING AUTOMATIC GATE OPERATOR
The R18FAST is an automatic gate motor designed specifically for electric pedestrian swing gates. Used mainly on apartment blocks and swimming pool areas the R18FAST is an underground out of site motor.
12 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL / COMMERCIAL / INDUSTRIAL - 1.2 METRE LEAF

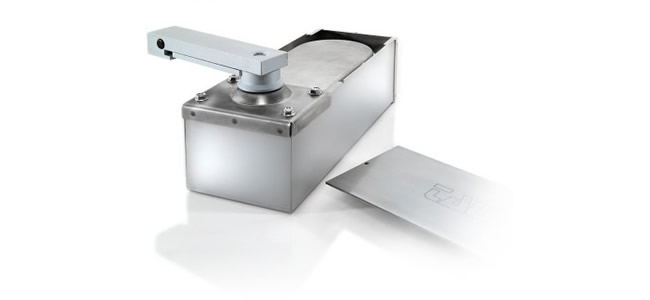

Manufactured by TAU in Italy the R18 is a 12 volt swing gate electro mechanical operator designed to be installed under ground. No side room is a major feature of this operator needing virtually no posts or side room at all. The operator installs neatly below the gate. The R18 is a non reversible operator with key operated manual override. It is suitable for gates to 1.2 metres wide and has built in opening stops. The R18 basically comes as two parts - 1. The motor itself 2. The foundation box. The R18 is a fast operator and is primarily designed for pedestrian gates up to 1200mm wide and like it's name suggests is fast but safe.
The R18 uses the LOGICD747 logic controller with options including battery backup. Simply add a battery and you have emergency power. The LOGICD747 logic controller has full features including end travel slow down.

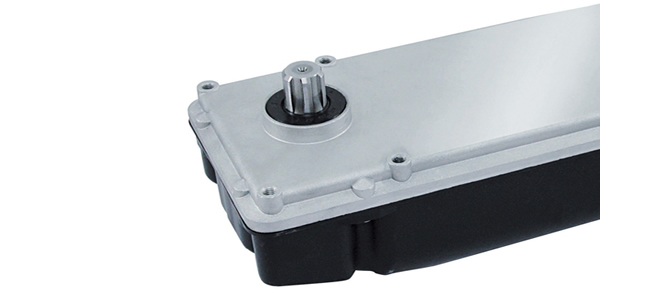

Motor and mounting kit.

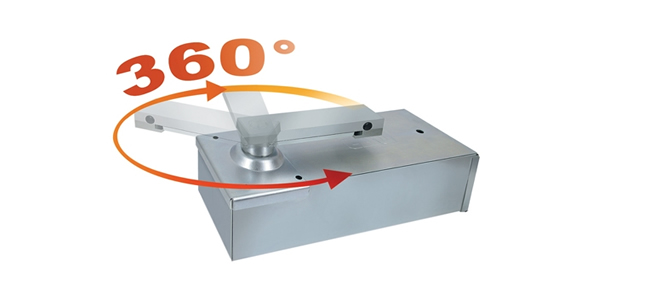

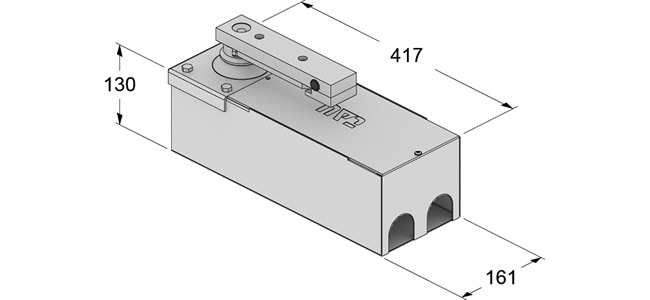

Galvanised underground foundation box for R18FAST
Logic control for one or two motors with receiver.
2 channel 433mhz key ring style remote control.
TAU wireless outdoor keypad
Battery leads for TAU control board. (Requires 9ah battery)
10W panel, 26ah battery galv enclosure and full mounting post
25W panel, 26ah battery, regulator glav enclosure and full mounting post
Motor Voltage -
12 volts DC
Current Standby -
Current at use -
Motor power -
Opening Time 90 degrees -
Maximum gate width -
Duty cycle -
IP rating -
DOWNLOAD & MANUALS
MOTOR MANUAL -
LOGIC CONTROL MANUAL -
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here
