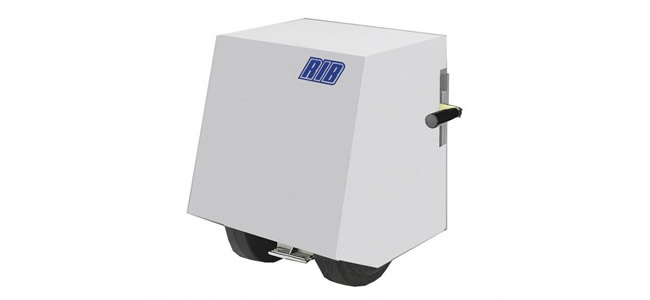

R50 AUTOMATIC GATE OPERATOR
The R50 by RIB is an Italian made swing and sliding gate motor for use on large mining or airport hangar doors and gates which demand power plus.
240 VOLT ELECTRIC GATE OPERATOR - INDUSTRIAL - 2000KG LEAF

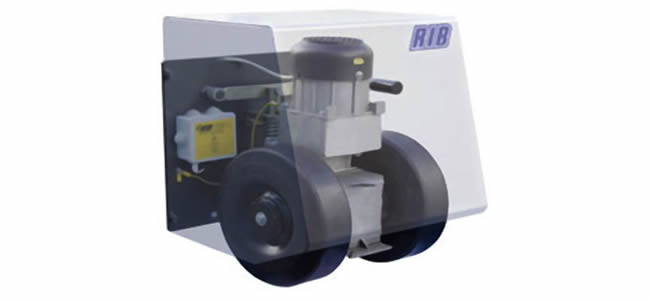

Manufactured by RIB Industries the R50 is a 240 volt swing gate / sliding gate electro mechanical operator. The R50 is suitable for gates to 10 metres wide, up to 2000kg in weight and boasts an incredible amount of torque. Unlike standard operators the R50 moves the gate by way of a "jockey wheel" concept. The R50 has manual override and is capable of handling uneven surfaces up to 60mm.
PRICING
This product has free delivery when ordered online.
R50 -
Single operator for gates to 10.0 metres wide
$6144.00
BUY ONLINE
LOGICCB6 -
Logic control for one or two motors
$647.00
BUY ONLINE
SPECIFICATION
Motor Voltage -
240 volts AC
Current Standby -
0mA
Current at use -
1.96A
Motor power -
295W
Maximum thrust -
1800Nm
Opening Time 90 degrees -
0.180 metres/second
Maximum gate width -
10000 mm
Duty cycle -
60%
Height -
470mm
Width -
360mm
Depth -
360mm
Weight -
45 Kg
IP rating -
IP54
DOWNLOAD & MANUALS
MOTOR MANUAL -
Click here to download the installation manual.
LOGIC CONTROL MANUAL -
Click here to download the logic control manual.
BROCHURE -
Click here for a brochure.
OPTIONS
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.

ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
