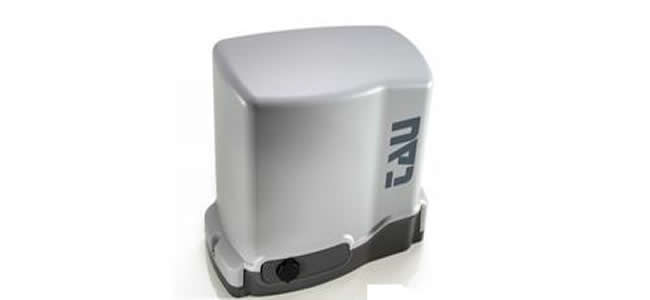

T-ONE XLE SLIDING AUTOMATIC GATE KIT
Designed for residential sliding gates the T-ONE XLE is an automatic gate opener for sliding electric gates up to 1200kg in weight. The kit comes complete with wireless receiver and two remote control transmitters.
240 VOLT SLIDING ELECTRIC GATE MOTOR - RESIDENTIAL - 1200KG
The T-ONE XLE is made in Italy by TAU with their usual attention to detail and quality workmanship. Rated at 1200kg the T-ONE XLE comes in a ready to go kit complete with pre wired logic control board with built in receiver and two remote control transmitters. Basically all you need is rack.
PRICING
TONEKITXLE -
Kit complete with motor and two transmitters.
$1230.00
RACKNYLON -
Metre length of steel reinforced nylon rack - six fixing lugs.
$25.00
REMTAU -
4 channel 433mhz key ring style remote control.
$66.00
TAUKEYPAD -
TAU wireless outdoor keypad
$268.00
SPECIFICATION
Motor Voltage -
240 volts AC
Current Standby -
110mA
Current at use -
2.1A
Motor power -
340W
Maximum thrust -
1310N
Operating speed -
10.5 metres per minute
Maximum gate size -
1200 kg
Duty cycle -
40%

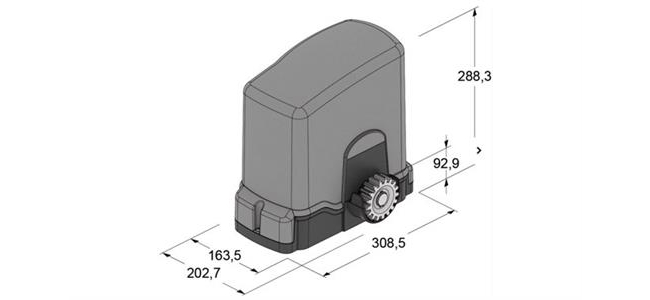

Height -
288mm
Width -
308mm
Depth -
202mm
Weight -
12.0 Kg
IP rating -
IP54
DOWNLOAD & MANUALS RESOURCE PAGE
Use the QR Code below or click anywhere in this link to the Automatic Gates information page and resources for this product.
TONEXLE-K100M QR CODE
OPTIONAL
RACK - Most sliding gate systems require rack (There are a few chain drive operators for industrial gates). Available in steel reinfoced nylon for gates up to 800 kilograms and a larger galvanised steel version for heavier industrial gates. One metre lengths with easy fix points. Click to view.

PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. Click to view.
