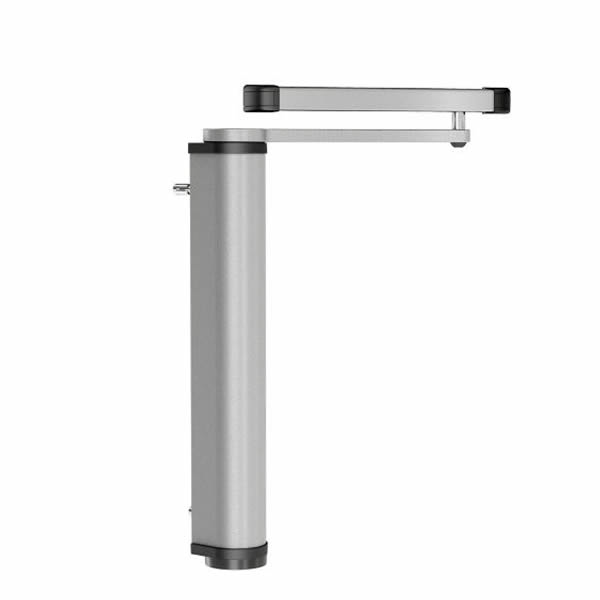

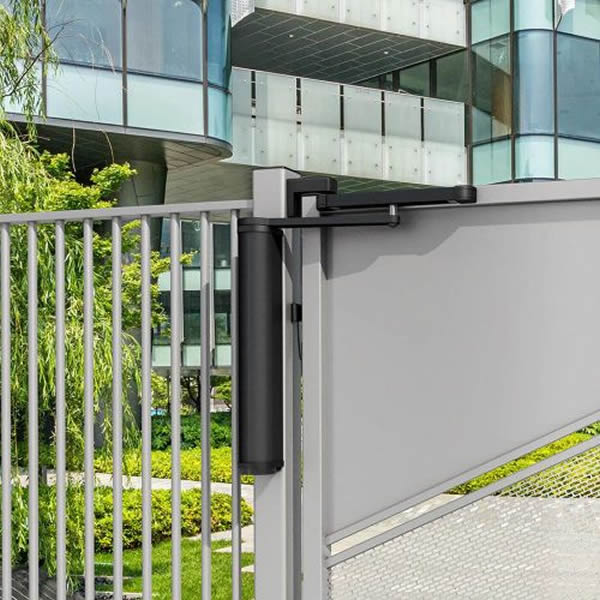

VENUS is a plug-and-play motorised gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor’s performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.
The VENUS motorised gate closer is specifically designed for pedestrian gates up to 1400 mm and 100 kg.
VENUS is a brushless motor specially designed for semi-manual or fully automated outdoor use.
WHAT MAKES IT SPECIAL?
• Safe, reliable operation thanks to low-energy speed control and integrated obstacle detection.
• All-in-one gate operator with integrated power supply and circuit board, input/output connectors and indicator light.
• Easy setup with free mobile app
Specifications:
- Motorised gate closer with integrated electronics
- 150 Nm torque
- Fits on 80 mm profiles
- For pedestrian gates up to 1400 mm wide and 100 kg
- Steel gear box
- Anodized aluminium cover
- 3 different arm options for installation
- Easy mounting with Quick-Fix
- Compact and vandal-proof design
- Input main Power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz), Max 5A
- Motor voltage: 24V DC
- Integrated warning light
- Automated obstacle detection with reverse function
- Brushless motor: long lifespan and intensive usage
- Reversible motor with backdrivability for easy manual use – to be combined with a lock
PERFORMANCE
- Specifically developed for outdoor use.
- Weatherproof and dustproof.
- IP55 rated.
- Maintenance-free (no need to lubricate or add oil). Always verify if there are specific safety regulations by local authorities.
- 2 year manufacturer’s warranty.
- Tested on 500,000 movements.

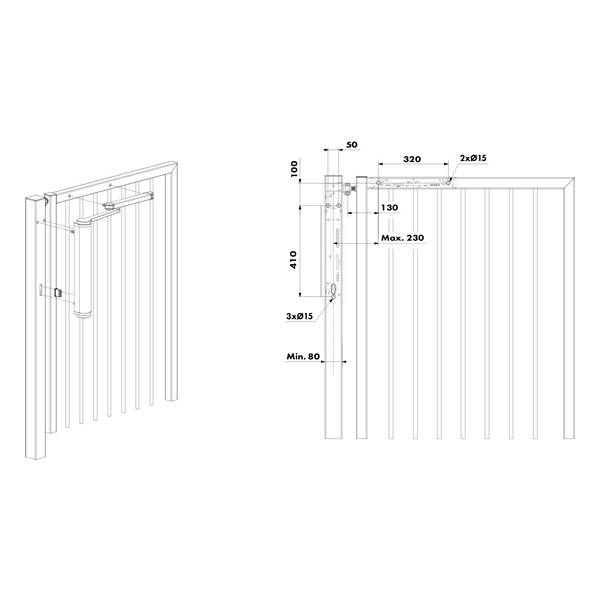

INSTALLATION
- For gate profiles of at least 80 mm, with a material thickness of at least 2 mm steel
- Suitable for both left and right turning gates.
- Requires a strike to determine the zero position.
- No safety sensors required thanks to the standard low energy mode.
- 3D installation video is available in an app.
- 3 configurable inputs for connecting access control, security sensors, etc.
- 3 configurable outputs for connecting an electric strike, electromagnetic strike plate, warning lamp or ambient lamp and a fixed 24V DC power supply.
CONFIGURATION
- Programming via an app
- Step-by-step guide with video instructions available within the app
- App is available for ANDROID and IOS
MATERIAL
- Anodised aluminium housing.
- Corrosion resistance of 500 hours in salt spray test, according to ISO9227.
- UV-resistant and colour-fast.
